Metal Prep for Coating: Metal Preparation for Perfect Powder Coating Results

Powder coating is a durable and attractive finish widely used in manufacturing, construction, automotive, and industrial applications. Achieving a flawless powder coating finish starts long before the powder is applied. Proper metal preparation is essential to ensure adhesion, durability, and an even finish. Without thorough prep work, coatings can peel, chip, or fail prematurely, costing time and money.

In this article, I will walk you through the critical steps of metal preparation for powder coating. I will explain why each step matters and provide practical tips to help you get the best results every time. Whether you are coating steel, aluminum, or other metals, understanding the preparation process is key to a high-quality finish.

Understanding Metal Prep for Coating

Metal preparation for powder coating involves cleaning, surface treatment, and sometimes priming to create an ideal surface for the powder to bond. The goal is to remove contaminants such as oils, dirt, rust, and mill scale that interfere with adhesion. Additionally, surface roughness and chemical treatments can improve the mechanical and chemical bonding of the powder.

The main stages of metal prep include:

• Cleaning: Removing oils, grease, dirt, and other residues.

• Surface treatment: Removing rust, mill scale, and oxidation.

• Rinsing and drying: Ensuring no residues remain.

• Masking: Protecting areas that should not be coated.




Each step requires attention to detail and the right equipment or chemicals. Skipping or rushing any stage can compromise the coating’s performance.

Our 65,000 sqf facility in Salt Lake City / Ogden, Utah

Cleaning Methods

Cleaning is the first and most critical step. Oils and grease from manufacturing or handling can prevent powder from adhering properly. Common cleaning methods include:

• Solvent cleaning: Using solvents to dissolve oils and grease.

• Alkaline cleaning: Using caustic solutions to break down organic contaminants.

• Ultrasonic cleaning: Employing ultrasonic waves in a cleaning bath for small parts.

• Mechanical cleaning: Wire brushing or abrasive blasting to remove surface contaminants.




Choosing the right cleaning method depends on the type of metal, the contaminants present, and the scale of the operation.

Do you prime metal before powder coating?

Priming metal before powder coating depends on the metal type and the intended use of the coated part. In many cases, powder coating can be applied directly to clean metal surfaces. However, priming offers several benefits:

• Improved adhesion: Primers create a chemical bond between the metal and powder.

• Corrosion resistance: Primers add an extra layer of protection against rust.

• Enhanced finish: Primers can smooth out surface imperfections.




For metals prone to corrosion, such as steel, applying a zinc or epoxy primer is common practice. Aluminum and stainless steel often require less priming but may benefit from conversion coatings like chromate or phosphate treatments.

Primers must be compatible with the powder coating system and cured properly before powder application. Consult coating specifications and test samples to determine if priming is necessary for your application.

Surface Treatment Techniques

After cleaning, surface treatment prepares the metal’s texture and chemistry for optimal powder adhesion. Common surface treatments include:

• Abrasive blasting: Using sand, glass beads, or other media to roughen the surface and remove rust or mill scale.

• Chemical conversion coatings: Applying phosphate or chromate treatments to improve corrosion resistance and adhesion.

• Etching: Using acid or alkaline solutions to microscopically roughen the surface.




Abrasive blasting is widely used because it creates a uniform profile that helps the powder mechanically lock onto the metal. The profile depth typically ranges from 1 to 3 mils (25 to 75 microns), depending on the powder type.

Chemical conversion coatings are often applied after blasting to add corrosion resistance. For example, iron phosphate coatings are common on steel parts before powder coating.

Proper rinsing after chemical treatments is essential to remove residues that could interfere with coating adhesion.

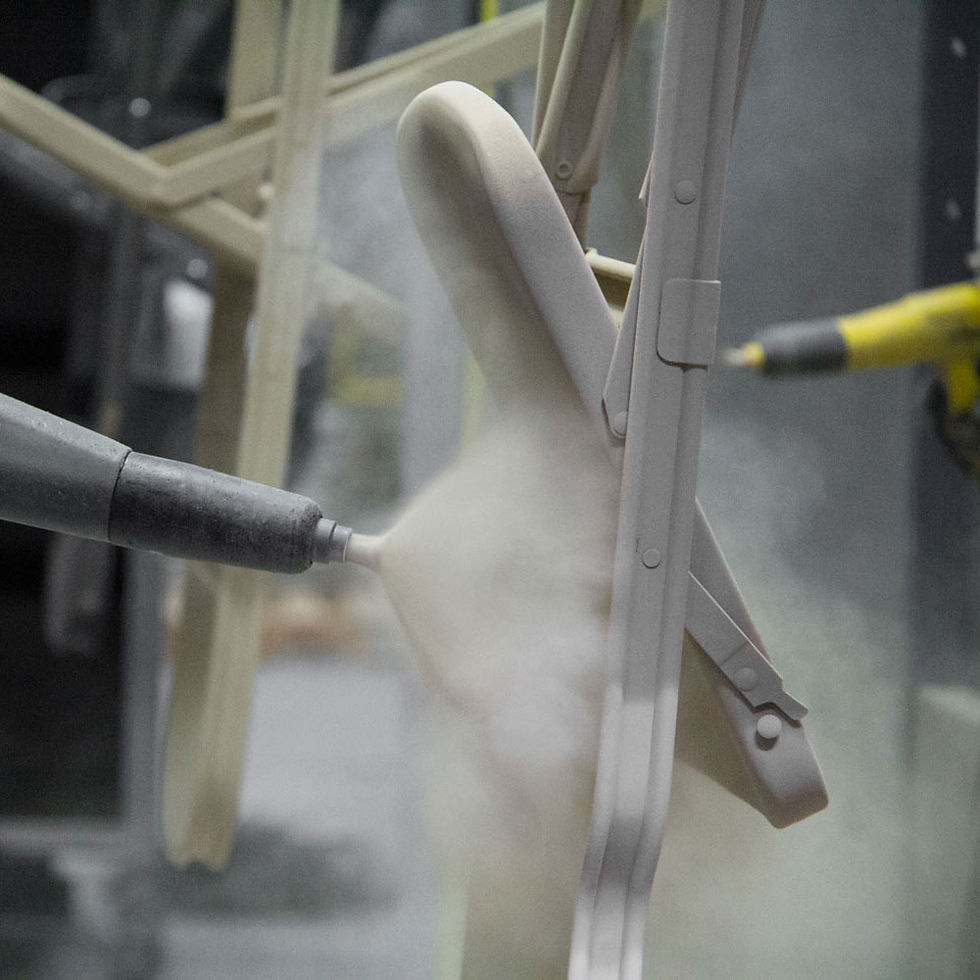

Our Powder Coating of Utah facility - powder coating a metal part

Drying and Masking

Once the metal is cleaned and treated, it must be thoroughly dried. Moisture on the surface can cause defects such as bubbles or poor adhesion. Drying can be done using:

• Forced air drying: Using heated air blowers.

• Oven drying: Placing parts in a drying oven at controlled temperatures.

• Ambient drying: Allowing parts to air dry in a clean environment.




Masking is the final preparation step before powder application. Areas that should not be coated, such as threads, electrical contacts, or mating surfaces, must be protected. Use high-temperature masking tapes, plugs, or caps designed for powder coating processes.

Proper masking prevents costly rework and ensures functional parts maintain their specifications.

Best Practices for Consistent Results

To achieve consistent, high-quality powder coating finishes, follow these best practices:

1. Standardize cleaning procedures: Use the same cleaning chemicals and methods for all parts.

2. Inspect surfaces regularly: Check for residual oils, rust, or contaminants before coating.

3. Control environmental conditions: Maintain clean, dust-free prep and coating areas.

4. Use quality abrasives: Replace blasting media regularly to ensure effective surface profiles.

5. Test adhesion: Perform adhesion tests on sample parts to verify prep quality.

6. Document processes: Keep detailed records of prep steps, chemicals, and times for traceability.




By implementing these practices, you reduce the risk of coating failures and improve overall product durability.

Final Thoughts on Metal Preparation for Powder Coating

Proper metal preparation is the foundation of perfect powder coating results. It requires a systematic approach to cleaning, surface treatment, drying, and masking. Each step plays a vital role in ensuring the powder adheres well and the finish lasts.

By mastering metal prep, you can confidently deliver high-volume, precision powder coating finishes that meet demanding industrial standards and customer expectations.
